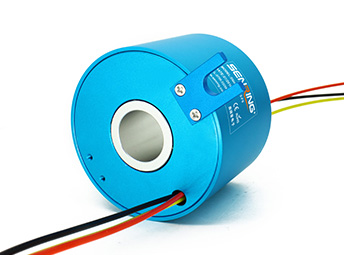

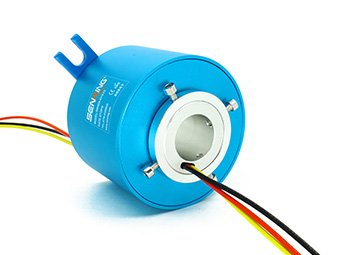

209904100 Series Through Hole High Current Slip Ring
4 channels,maximum current 100A per channel;
SENRING 209904100 series 360° rotation High Current Through Hole slip ring, hole size 30mm,OD 99mm,sipport 4 circuits (100A each) high current.If you need to combine other circuit/signal channel no.,customization available based on the standard model.Such
- Features
- Transmitting 100A high current when 360° rotating,support 4 circuits,100A each;
- Through hole structure design,hole size 30mm,OD 99mm;
- Can be customize quickly on special circuit no. based on standard model;
- Has the advantages of small contact resistance, low heat and long - term stable operation;
- Aluminium alloy housing, integrated structure design,easy installation.

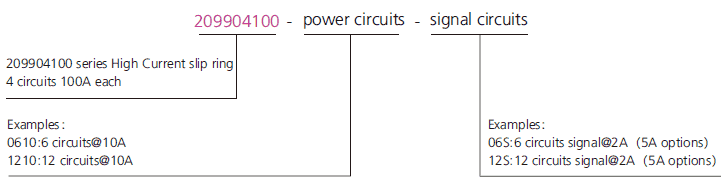

Part no. description

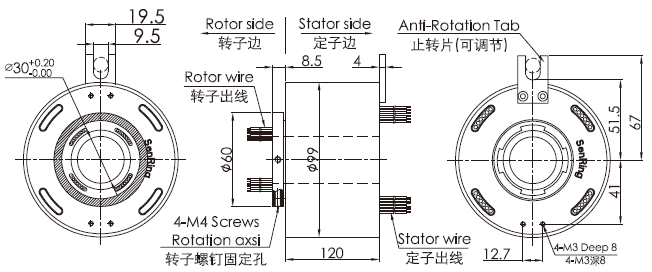

Drawing
Standard model list
| Model | sCircuits | Max current | voltage | Max speed | working temp. |
| 209904100 | 4 circuits | 100A | 690V | 250RPM | -40℃~+80℃ |
Technical Specification of 209904100 series slip ring
