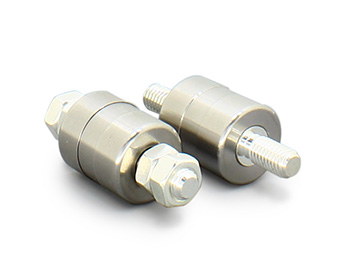

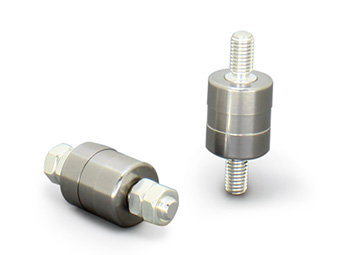

20180150 Series Single 50A High Current Slip Ring
single channel,current ranges from 50~300A;
SENRING 20180150 series single 50A large current slip ring,OD:18mm,compact size,fixed by screw terminal installation,developed specially for welding, electroplating and other industries,with convenient installation, light weight and large load current.
- Features
- OD:30mm,total length:51mm, main body length 19mm;
- High current,maximum single current:50A;
- Use stainless steel housing;
- Low insertion loss,low heat, long-term stable operation
- Integrated structure design,easy installation
Part no. description
Drawing
Standard model list
| Model | Circuits | Max current | Max speed | working temp. |
| 20180150 | 1 circuit | 50A | 2000RPM | -29℃~+60℃ |
Technical Specification of 20180150 series slip ring
