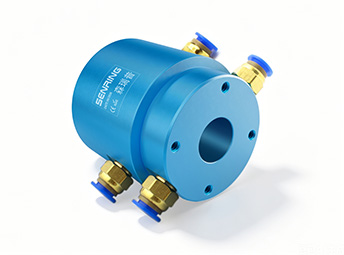

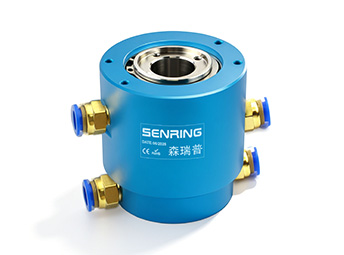

sql2 Series Hydraulic (Oil) Rotary Union

2 Gas Passage,Can Combine Transfer Electrical Power/Signal,G1/4",Support 8~10mm Pipes

SENRING SQL2 Series Pneumatic Rotary Union: for rotary transmission of hydraulic oil. Optional 2–8 passages, custom more passages available. Oil & electrical signal combination optional. Custom dimensions, outline, passage count and max working pressure.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE

Features

Part no. description

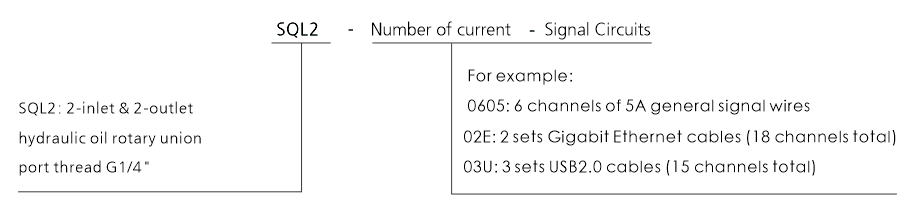

sql2 series sql2 Series Hydraulic (Oil) Rotary Union slip ring description

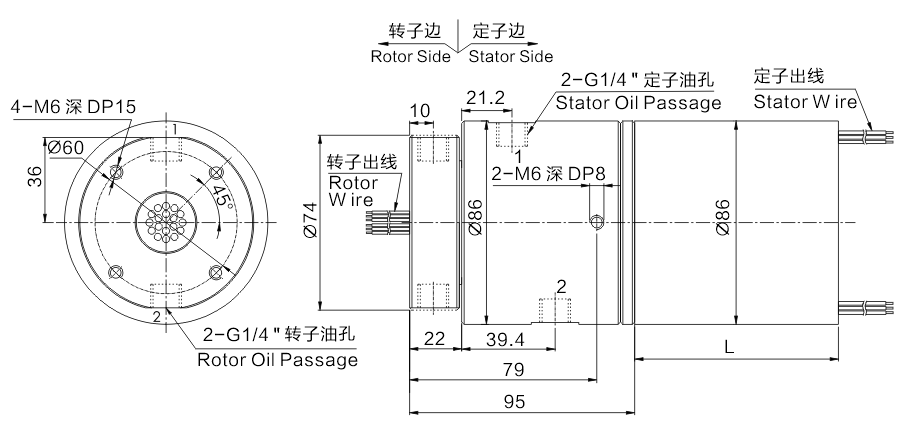

Drawing

Standard model list

Model	Passages(Gas)	Port Size	Pipe Size
SQL2	2 passages	G1/4"	8~10mm

Drawing

Standard model list

Model	Passages(Gas)	Port Size	Power Circuits(10A)	Signal Circuits(2-5A)	Length L(mm)
SQL2-0605	2 Passages	G1/4"	0	6	48
SQL2-0610	2 Passages	G1/4"	6	0	48
SQL2-1205	2 Passages	G1/4"	0	12	72
SQL2-1210	2 Passages	G1/4"	12	0	72
SQL2-1805	2 Passages	G1/4"	0	18	96
SQL2-1810	2 Passages	G1/4"	18	0	96
SQL2-2405	2 Passages	G1/4"	0	24	120
SQL2-2410	2 Passages	G1/4"	24	0	120

Technical Specification of sql2 series slip ring

Passages(Gas)	2 passage
Pipe Size	8~10mm pipe, G1/4"port
Mechanical Data
spec.	data
Working life	500millions for ref(depends on working conditions)
Max. Operating Speed	100RPM intermittently
Working temp.	-30°C~80°C
Work humidity	0~85% RH
Contact Materia	Precious Metal
Housing Material	aluminum alloy
IP Grade	IP51

Max. Operating Pressure	Positive Pressure 15Mpa,
torque	＞11N.m reference only, different specfication have different torque
Electrical Data
spec.	data
	Power	Signal
Voltage range	0~240VAC/VDC	0~440VAC/VDC
Insolution resistance	≥300MΩ/300VDC	≥300MΩ/300VDC
Lead wire spec.	AWG30# Silver-plated teflon wire	AWG30# Silver-plated teflon wire
Lead wire length	standard 250mm （can be customized）
Insolution resistance	500VAC@50Hz,60s
Electrical noise	<0.01Ω
