SENRING
Industrial Bus Slip Rings(Custom)

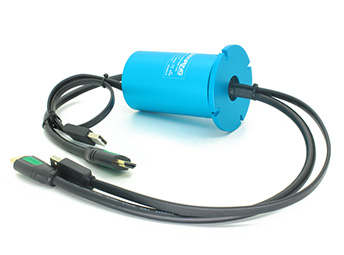

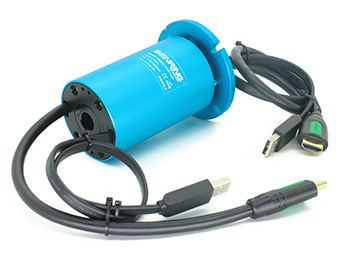

BM099 Series Industrial Bus Slip Ring(RS-232,RS-485,RS-422)

without hole(solid),OD 99mm,max. 120 circuits

SENRING BM099 Series Industrial Bus Slip Ring includes all kinds of Industrial Bus Signal Slip Rings, such as :Canbus, Profibus, RS-232, USB, 1000M Ethernet, coaxial RF, VGA, etc. We can quickly modify our standard BM099 Series Industrial Bus Slip Ring to

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
without hole(solid),OD 99mm,max. 120 circuits;
accurately transmit high speed data
stably transmit all kinds of signals, such as, RS-232, RS-485, RS-422, VGA, etc.;
stably transmit all kinds of signals, such as, Profibus,LonWorks,CanBus,DeviceNet,ControlNet, etc.;
transmit mixed signals, such as, USB,HDMI, 1000M ethernet, fiber optic, VGA, DVI, coaxial RF (high frequency), etc;
stably transmit Ethernet data(10M / 100M / 1000M BaseT);
Part no. description
bm099 series BM099 Series Industrial Bus Slip Ring(RS-232,RS-485,RS-422) slip ring description
Code List of Signal Type

F - 100M Ethernet (10, 100 BaseT Ethernet) - RJ45 (4circuits)

E - 1000M Ethernet (1000 BaseT Ethernet) - RJ45 (9circuits)

P - Profibus (Profibus - 4-Pin D-Sub) (4circuits)

C - Canbus (Canbus - 4-Pin D-Sub) (4circuits)

D - Device Net - 5 Pin Micro Change (5 circuits)

T - Control Net - 75 Ω BNC (4circuits)

V - VGA (9circuits)

H - HDMI (19circuits)

U - USB 2.0 (5circuits)

Q - Coaxial signal (Coax - 75 Ω BNC)(2circuits)

R - RS485 (3circuits)

R1 - RS422(5circuits)

R2 - RS232(10circuits)

B - Servo motor encoder signal(8circuits)

E1 - Industrial Ethernet (9circuits)

Drawing
bm099 series BM099 Series Industrial Bus Slip Ring(RS-232,RS-485,RS-422) slip ring Drawing
Technical Specification of bm099 series slip ring
circuits no. 2~120circuits (depends on model)
voltage rating 0~440 VDC/VAC
Housing Material AL alloy
Working Life > 80 millions for ref(depends on working conditions)
Electrical Noise <10mΩ
dielectric strength [email protected]
Dielectric Strength 1000MΩ@600VDC
Working Temp. -40℃ ~ 80°C
mechanical vibration MIL-STD-810E
Current signal (2A),10A/circuit
max. rotating speed 250RPM continously, 1000RPM intermittently
torque 0.1N.m;+0.03N.m/6 wire
Contact Material precious metal: gold alloy
contact resistance <20mΩ(AWG16#,300mm)
Lead wire Spec. UL [email protected],Awg16
lead wire length 300mm
IP Grade IP51
Work Humidity 10% ~ 85% RH
CE certificate YES
material RoHS compliant
