Industrial Bus Slip Rings(Custom)

BH2599 Series Industrial Bus Slip Ring(CanBus、Profibus,etc)

hole size 25.4mm, OD 99mm,max. 96 circuits

SENRING BH2599 Series Industrial Bus Slip Ring includes all kinds of Industrial Bus Signal Slip Rings, such as HDMI,HD-SDI,GbE(gigabit Ethernet),RS-232,RS-485,RS-422,Profibus, etc. We can quickly modify BH2599 Series Industrial Bus Slip Ring to fit your

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
hole size 25.4mm, OD 99mm,max. 96 circuits;
accurately transmit high speed data
stably transmit all kinds of signals, such as, RS-232, RS-485, RS-422, VGA, etc.;
stably transmit all kinds of signals, such as, Profibus,LonWorks,CanBus,DeviceNet,ControlNet, etc.;
transmit mixed signals, such as, USB,HDMI, 1000M ethernet, fiber optic, VGA, DVI, coaxial RF (high frequency), etc.
stably transmit Ethernet data(10M / 100M / 1000M BaseT);
Part no. description

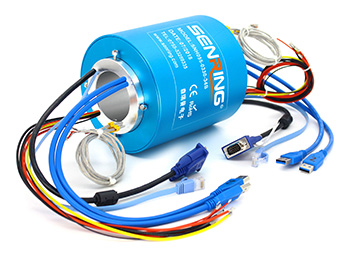

bh2599 series BH2599 Series Industrial Bus Slip Ring(CanBus、Profibus,etc) slip ring description
Code List of Signal Type

F - 100M Ethernet (10, 100 BaseT Ethernet) - RJ45 (4circuits)

E - 1000M Ethernet (1000 BaseT Ethernet) - RJ45 (9circuits)

P - Profibus (Profibus - 4-Pin D-Sub) (4circuits)

C - Canbus (Canbus - 4-Pin D-Sub) (4circuits)

D - Device Net - 5 Pin Micro Change (5 circuits)

T - Control Net - 75 Ω BNC (4circuits)

V - VGA (9circuits)

U - USB 2.0 (5circuits)

R - RS485 (3circuits)

R1 - RS422(5circuits)

R2 - RS232(10circuits)

B - Servo motor encoder signal(8circuits)

E1 - Industrial Ethernet (9circuits)

Drawing
bh2599 series BH2599 Series Industrial Bus Slip Ring(CanBus、Profibus,etc) slip ring Drawing
Technical Specification of bh2599 series slip ring
circuits no. 2~96circuits (depends on model)
voltage rating 0~690 VDC/VAC
Housing Material AL alloy
Working Life > 80 millions for ref(depends on working conditions)
Electrical Noise <10mΩ
dielectric strength 800VDC@50Hz
Dielectric Strength 1000MΩ@600VDC
Working Temp. -40℃ ~ 80°C
mechanical vibration MIL-STD-810E
Current signal (2A),10A/circuit
max. rotating speed 250RPM continously, 1000RPM intermittently
torque 0.1N.m;+0.03N.m/6 wire
Contact Material precious metal: gold alloy
contact resistance <20mΩ(AWG17#,300mm)
Lead wire Spec. UL Teflon@Awg22,Awg16
lead wire length 300mm
IP Grade IP51
Work Humidity 10% ~ 85% RH
CE certificate YES
material RoHS compliant
