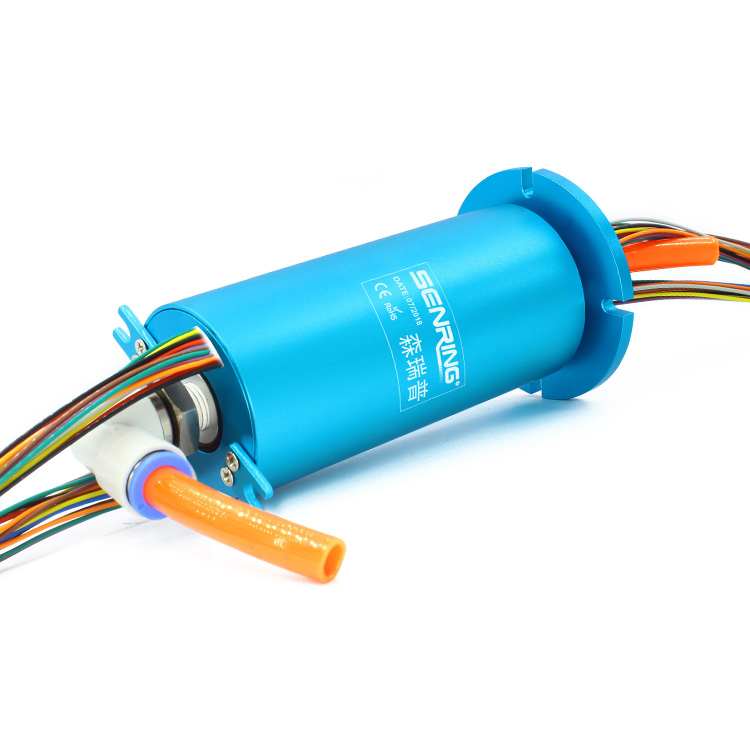

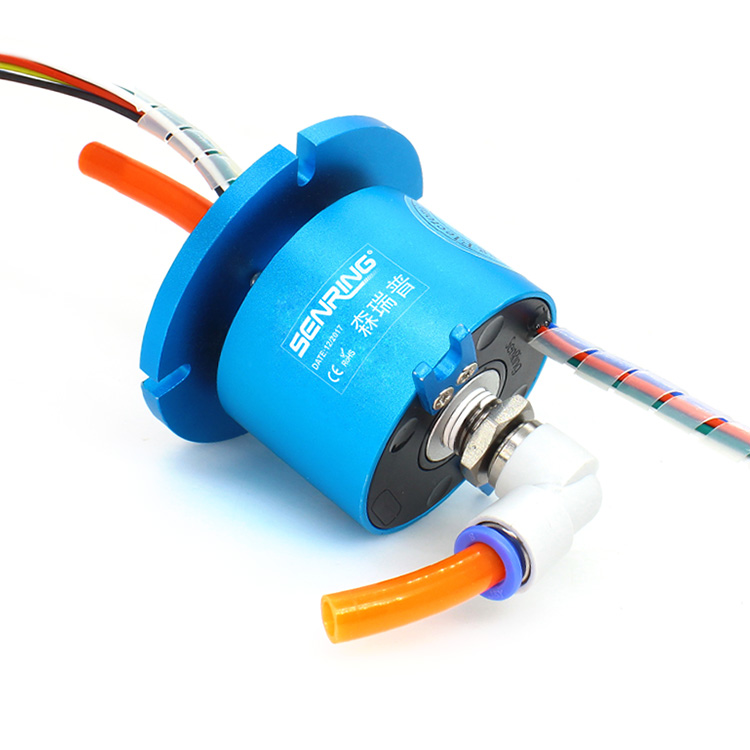

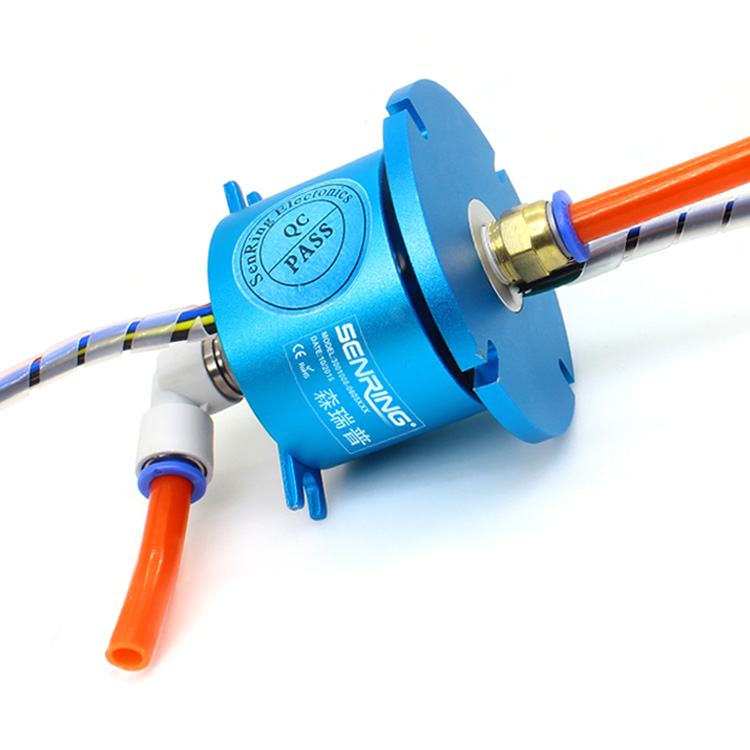

3001008 Series 1-Passages Rotary Unions

Features

• Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc;
• 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
• Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
• Standard version with flange mounting,can be customized with hollow shaft mounting;
• Support 1 G1/4" port for 8~10mm pipes.

Part no. description

Drawing

Standard Model List

Model List	Passages(Gas)	Power Circuits(10A)	Signal Circuits(2A)	Length L(mm)
3001008-02S	1 passage	0	2	34
3001008-0210	1 passage	2	0	34
3001008-03S	1 passage	0	3	34
3001008-0310	1 passage	3	0	34
3001008-06	1 passage	0	6	34
3001008-0210-04S	1 passage	2	4	34
3001008-0410-02S	1 passage	4	2	34
3001008-0610	1 passage	6	0	34
3001008-12S	1 passage	0	12	52
3001008-0210-10S	1 passage	2	10	52
3001008-0310-09S	1 passage	3	9	52
3001008-0410-08S	1 passage	4	8	52
3001008-0610-06S	1 passage	6	6	52
3001008-0810-04S	1 passage	8	4	52
3001008-1010-02S	1 passage	10	2	52
3001008-1210	1 passage	12	0	52

Drawing

Standard Model List

Model List	Passages(Gas)	Power Circuits(10A)	Signal Circuits(2A)	Length L(mm)
3001008-1210-06S	1 passage	12	6	71.5
3001008-1410-04S	1 passage	14	4	71.5
3001008-1610-02S	1 passage	16	2	71.5
3001008-18S	1 passage	0	18	71.5
3001008-0210-16S	1 passage	2	16	71.5
3001008-0410-14S	1 passage	4	14	71.5
3001008-0610-12S	1 passage	6	12	71.5
3001008-0810-10S	1 passage	8	10	71.5
3001008-1010-08S	1 passage	10	8	71.5
3001008-24S	1 passage	0	24	88.5
3001008-0410-20S	1 passage	4	20	88.5
3001008-0610-18S	1 passage	6	18	88.5
3001008-1210-12S	1 passage	12	12	88.5
3001008-1810-06S	1 passage	18	6	88.5
3001008-2410	1 passage	24	0	88.5
3001008-30S	1 passage	0	30	105
3001008-0210-28S	1 passage	2	28	105
3001008-0410-26S	1 passage	4	26	105
3001008-0610-24S	1 passage	6	24	105
3001008-1210-18S	1 passage	12	18	105
3001008-36S	1 passage	0	36	122
3001008-0410-32S	1 passage	4	32	122
3001008-0610-30S	1 passage	6	30	122
3001008-42S	1 passage	0	42	139
3001008-0410-38S	1 passage	4	38	139
3001008-48S	1 passage	0	48	156
3001008-56S	1 passage	0	56	178
3001008-72S	1 passage	0	72	223

Technical Specification Of 3001008 Series Slip Ring

Passages(Gas)	1 passage
Pipe Size	8mm pipe, G1/4" Port
Mechanical Data
spec.	data
Working life	20millions for ref(depends on working conditions)
Max. Operating Speed	250RPM continously, 1000RPM intermittently
Working temp.	-30°C~80°C
Work humidity	0~85% RH
Contact Materia	Precious Metal
Housing Material	aluminum alloy
IP Grade	IP51

Max. Operating Pressure	Positive Pressure 1Mpa, Vacuum -90kPa
torque	0.2N.m
Electrical
spec.	data
	Power	Signal
Voltage range	0~440VAC/VDC	0~440VAC/VDC
Insolution resistance	<500MΩ/300VDC	<500MΩ/300VDC
Lead wire spec.	AWG17# Silver-plated teflon wire	AWG26# Silver-plated teflon wire
Lead wire length	standard 200mm（can be customized）
Insolution resistance	500VAC@50Hz,6s
Electrical noise	<0.01Ω
