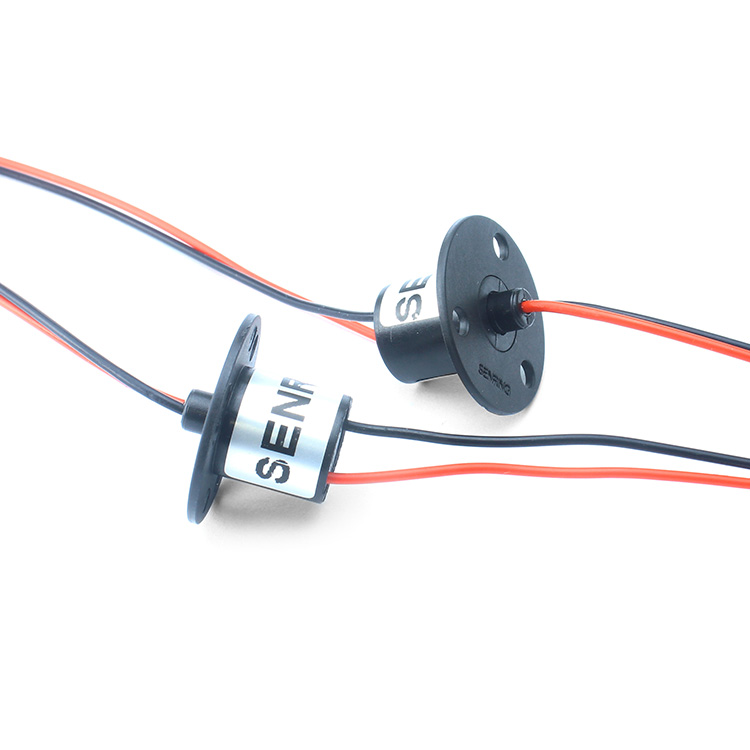

M125 Series Miniature Capsule Slip Ring

Features

• OD 12.5mm, Length 13.5mm~23.5mm;
• 6~18circuits signal@1.5A or 2~4circuits@5A,;
• low torque,less than 0.06N.m;
• Standard product, stocks available;
• Flange A type,C type,without flange optional;
• Integrated structure, easy installation.

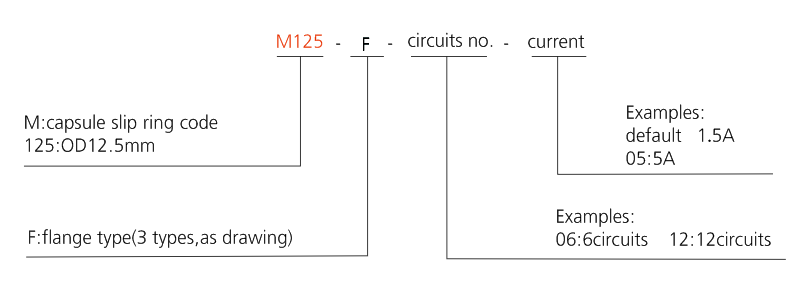

Part no. description

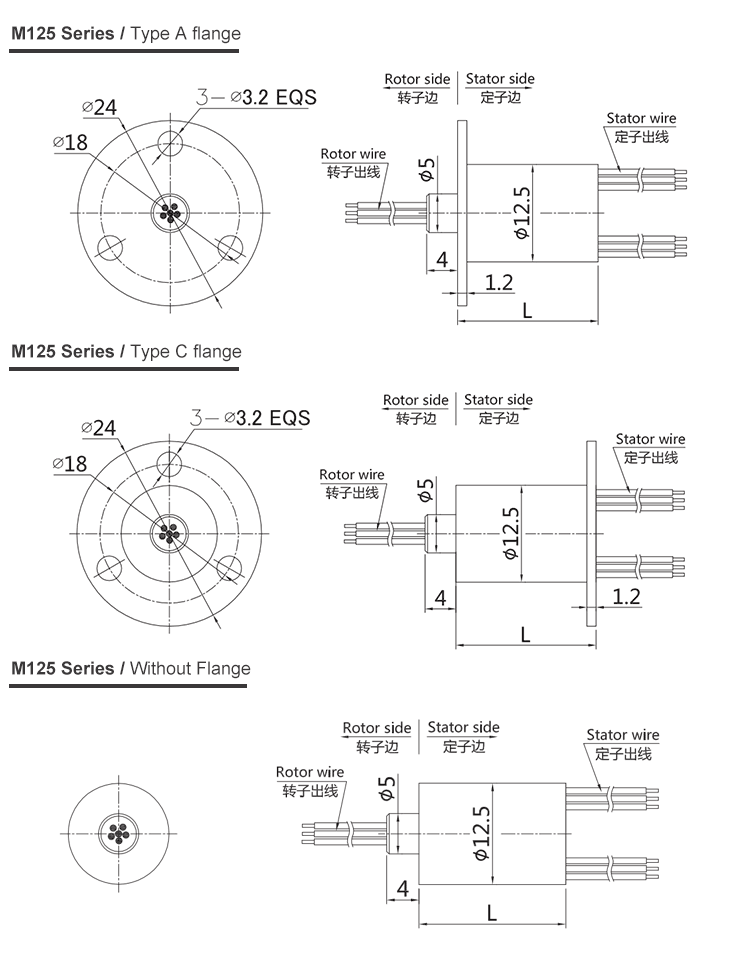

Drawing

Standard Model List

model	Circuits NO.	Max current/circuit	lead wire spec.	Length L(mm)
M125-06	6	1.5A	Silver-plated teflon AWG30#	13.5
M125-12	12	1.5A	Silver-plated teflon AWG30#	18.2
M125-18	18	1.5A	Silver-plated teflon AWG30#	23.5
M125-0205	2	5A	Silver-plated teflon AWG22#	13.5
M125-0305	3	5A	Silver-plated teflon AWG22#	18.2
M125-0405	4	5A	Silver-plated teflon AWG22#	18.2

Technical Specification Of m125 Series Slip Ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	250RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥200MΩ/300VDC	≥200MΩ/300VDC
Lead wire Spec.	refer to model list	refer to model list
lead wire length	standard length 150mm(can be customized)
Dielectric Strength	300VAC@50Hz,60s
Electrical Noise	< 0.01Ω
IP Grade	IP51
