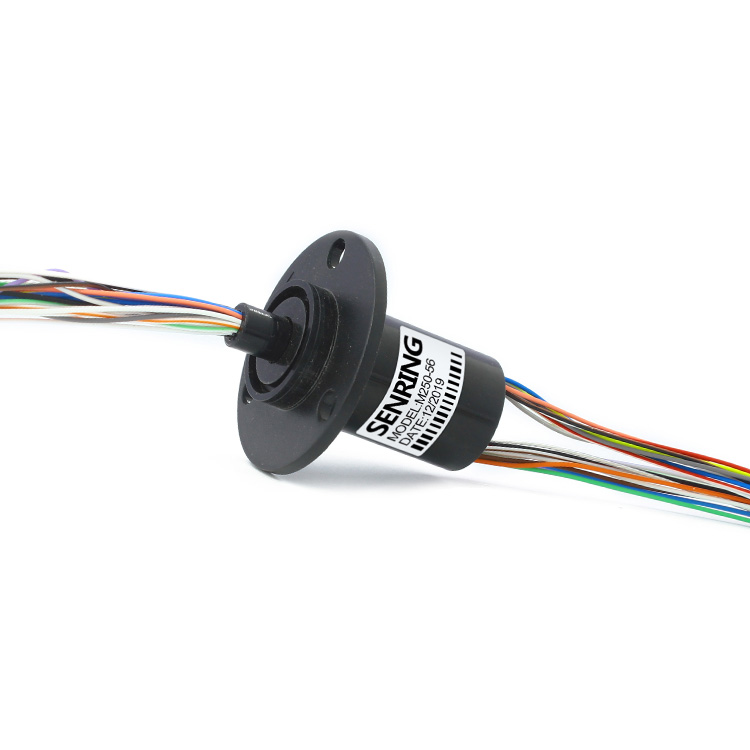

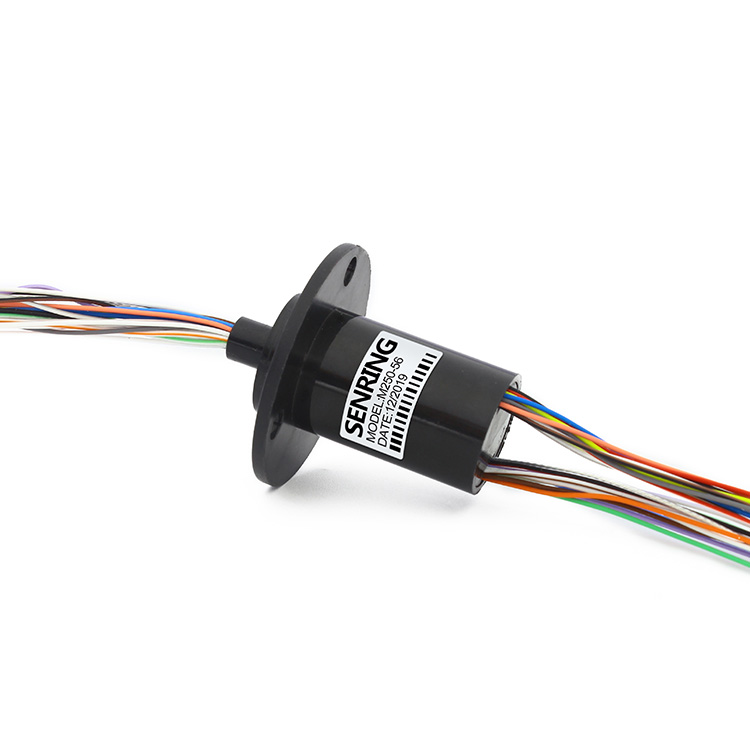

M250 Series OD 25mm Compact Slip Ring(Capsule Slip Ring)

SenRing M250 series capsule slip ring is medium compact slip ring,OD 25mm.It is reseach and development of specializing consume electronics,security industry,revolving stage of lights industry, and the material used gold to gold contact,ensure the stablit

SenRing M250 series medium capsule slip ring,support 1~56circuits@2A,applied to any device where requires to transmit signals when 360 rotating ,such as security industry,stage lamp....etc.

Installation Resources 3D Model @Technical Inquiry Get a Quote

Features
OD 25mm; Low torque,less than 0.06N.m; standard 2~56 circuits signal(each 2A); Standard product, stocks available; A flange type installation,easy installation;

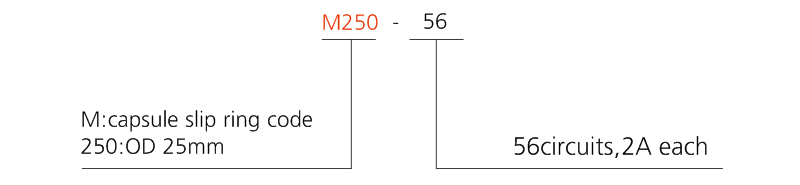

Part no. description

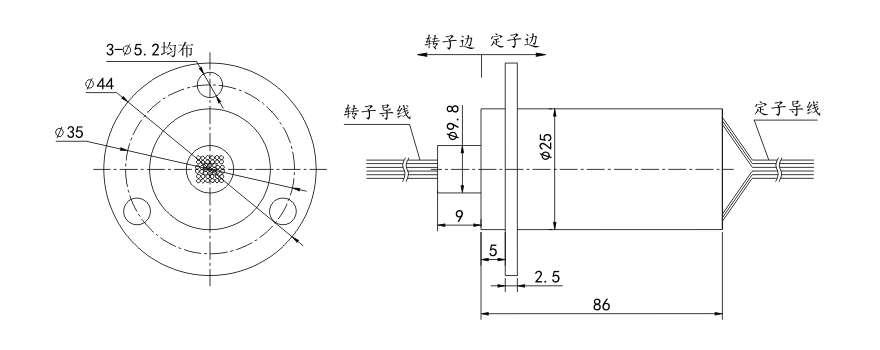

Drawing

Standard Model List

model	Circuits NO.	Max current/circuit	lead wire spec.	Length L(mm)
M250-56	56	2A	Silver-plated teflon AWG26#	86

Technical Specification Of m250 Series Slip Ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	250RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥200MΩ/300VDC	≥200MΩ/300VDC
Lead wire Spec.	AWG26# Silver-plated teflon	AWG26# Silver-plated teflon
lead wire length	standard length 150mm (can be customized)
Dielectric Strength	300VAC @50Hz,60s
Electrical Noise	< 0.01Ω
