M155 Series Mini Capsule Slip Ring

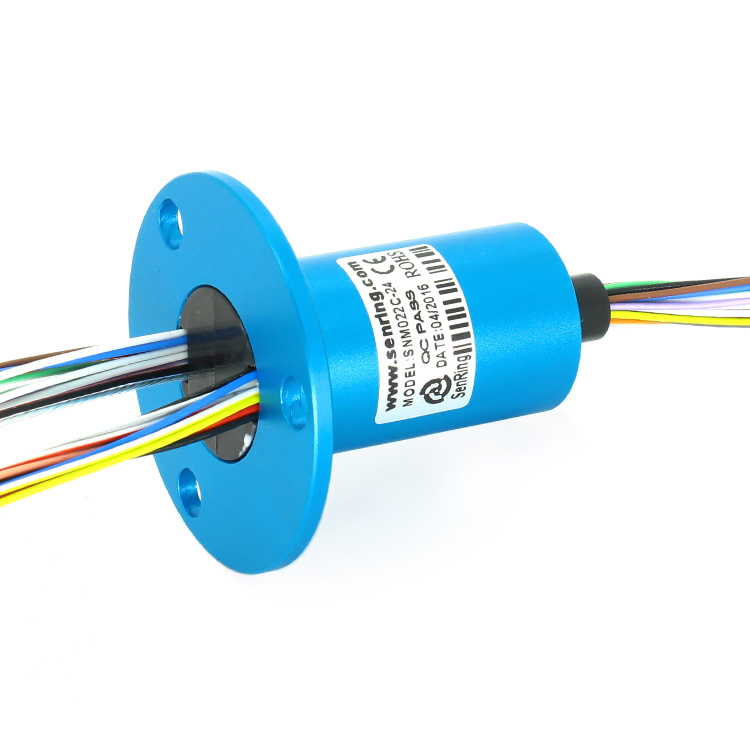

M155 series mini capsule slip ring,OD 15.5mm, length 39mm,it is compact, advanced military level, gold-gold contact ensures low contact resistance, stability and working life, M155 designed 90° degree V -groove ensures smooth rotating, low torque. More in

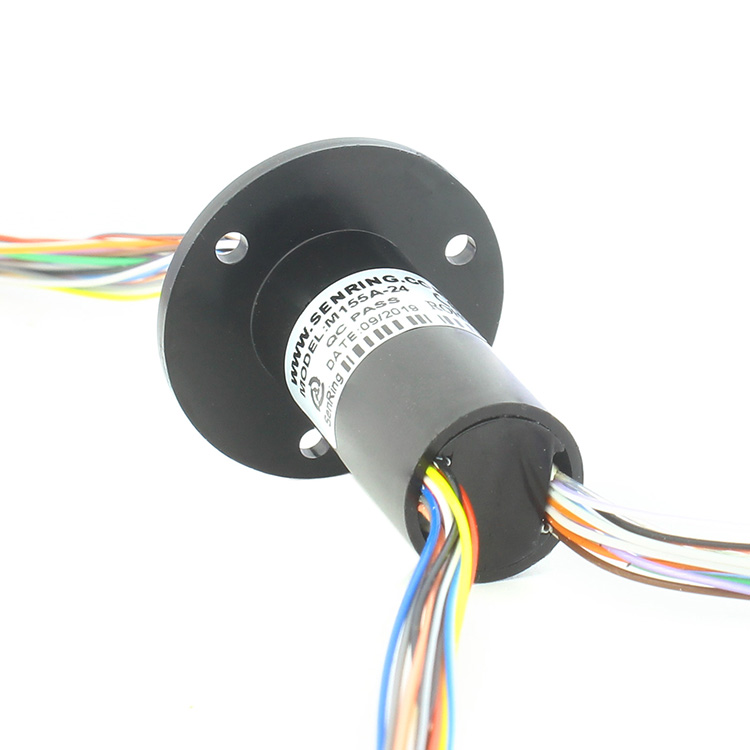

SenRing M155 Series mini Capsule Slip Ring,SNM015A-24 mini capsule slip ring,OD 15.5mm,flange A type,support 24 circuits signal 2A,SNM015A-24-8means：mini capsule slip ring of high grade production,OD 15.5mm,flange A type,support 24 circuits signal 2A.

Installation Resources 3D Model @Technical Inquiry Get a Quote

Features
OD 15.5mm; Low torque,less than 0.06N.m Standard mode support 1~24 wires(each 1.5A); Flange A type and C type optional; Standard product, stocks available;

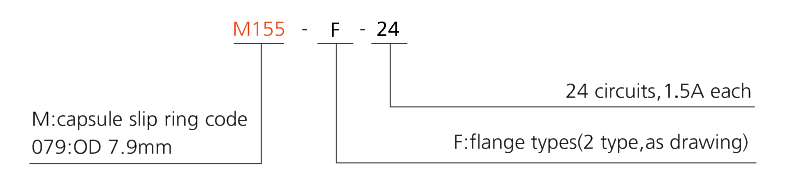

Part no. description

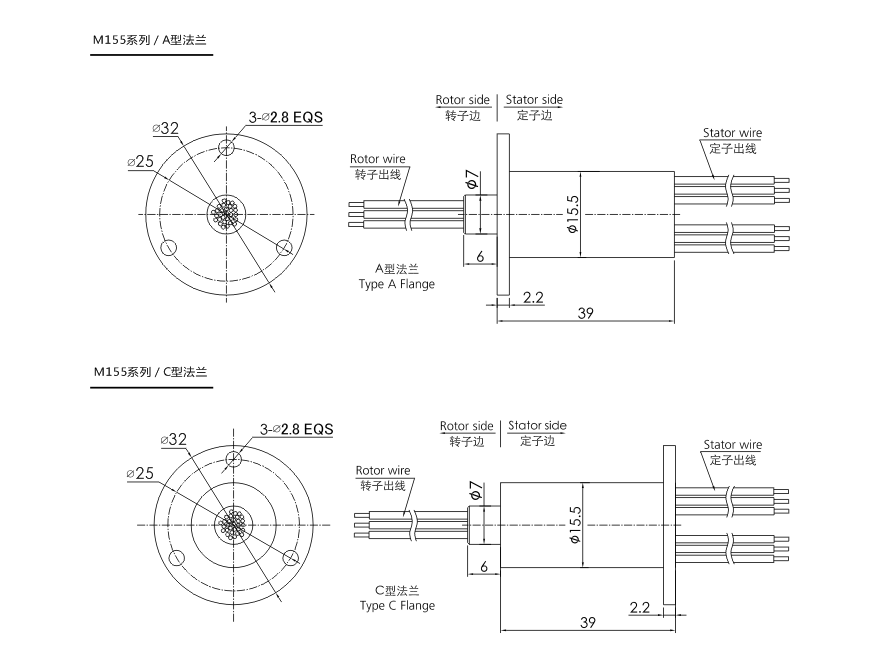

Drawing

Standard Model List

model	Circuits NO.	Max current/circuit	Length L(mm)
M155A-24	24	1.5A	39
M155C-24	24	1.5A	39

Technical Specification Of m155 Series Slip Ring

Mechanicall parameters
Working Life	10millions for ref(depends on working conditions)
Rotating speed	250RPM
Working Temp.	-30°C~80°C
Work Humidity	0~85% RH
Contact Material	precious metal:gold-gold
Housing Material	engineered plastic
Torque	0.05N.m+0.01N.m/6 wire
IP Grade	IP51

Electrical parameters
Spec.	Power	Signal
Voltage Range	0~240VAC/VDC	0~240VAC/VDC
Insolution Resistance	≥200MΩ/300VDC	≥200MΩ/300VDC
Lead wire Spec.	AWG30# Silver-plated teflon	AWG30# Silver-plated teflon
lead wire length	standard length 150mm (can be customized)
Dielectric Strength	300VAC @50Hz,60s
Electrical Noise	< 0.01Ω
