A2H Series Mercury Slip Ring(2circuits@30A Power Current)
SENRING A2H series mercury slip ring also called 2 circuits@30A mercury rotating connector (rotary joint),torque 200x10-3Nm,can be transmit 2circuits@30A power current.
Installation Resources 3D Model @Technical Inquiry Get a Quote

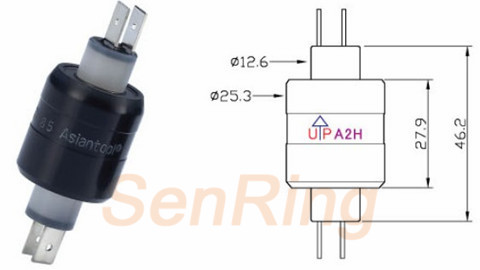

Drawing

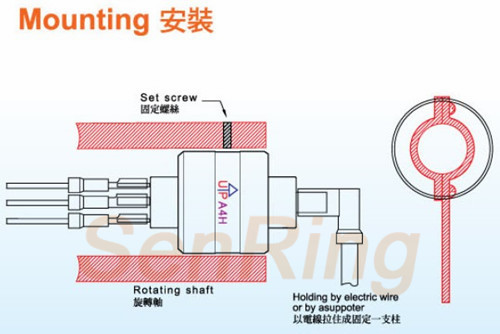

Installation
Standard Model List
| Model | Poles | Current(A) | Dielectric strength AC/DC(V) | Max frequency MHZ | Contact Resistance | Max rotating speed | Working temp.(Max/Min ℃) | Torque (x10-3Nm) | Insolution resistance |
| A2H | 2 pole | 30A | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 200 | >25MΩ |
Application
SENRING A2H series mercury slip ring also called 2 circuits@30A mercury rotating connector (rotary joint),torque 200x10-3Nm,can be transmit 2circuits@30A power current.
Caution
1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2、Vertical installation and storage should keep the UP towards direction
3、Installing the slip ring into the shafe should keep no eccentricity
4、Do not solder on the slip ring and copper terminals
5、Special connection terminals can't use reduplicate
6、Vibration will shorten the working life
7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause the damage or shorten the working life
