A8H Series Mercury Slip Ring(6circuits@30A Power+2circuits Signal@4A)

8circuits, 6circuits@30A power+2circuits@4A

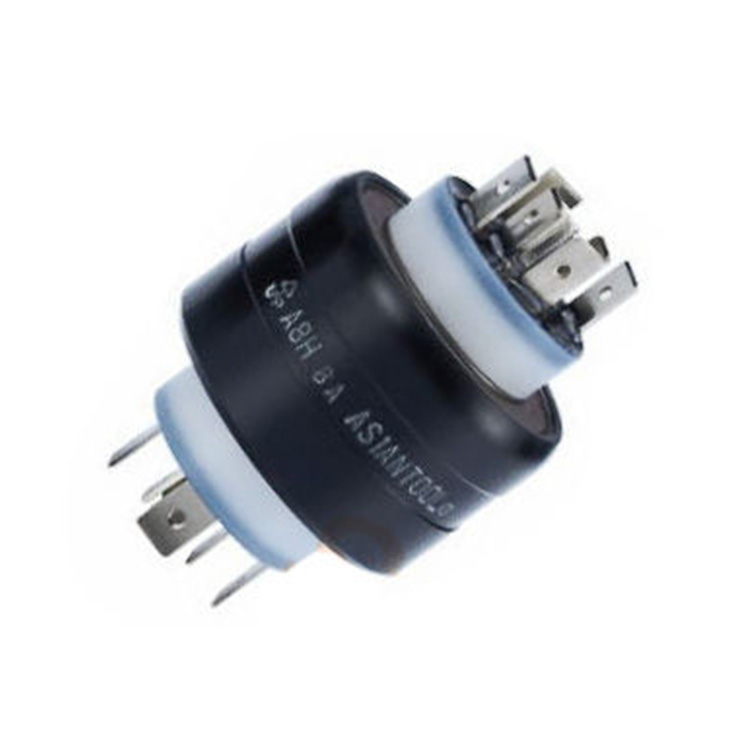

SENRING A8H series mercury slip ring also called 6 circuits@30A power+2circuits@4A mercury rotating connector (rotary joint),torque 1000x10-3Nm,can be transmit 6circuits@30A power+2circuits signal@4A.

Installation Resources 3D Model @Technical Inquiry Get a Quote

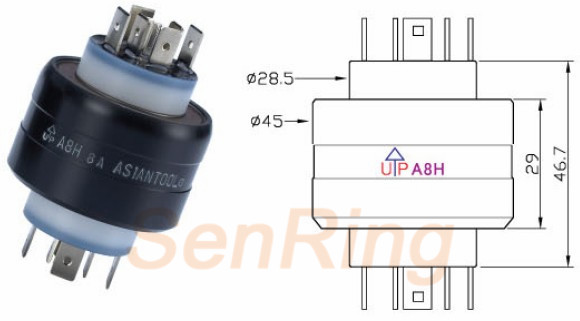

Drawing

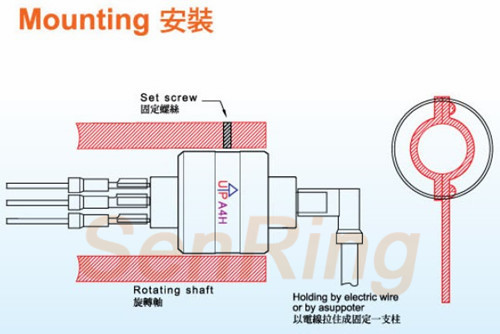

Installation

Standard Model List

Model	Poles	Current(A)	Dielectric strength AC/DC(V)	Max frequency MHZ	Contact Resistance	Max rotating speed	Working temp.(Max/Min ℃)	Torque (x10-3Nm)	Insolution resistance
A8H	8 pole	30A/6	250	200	<1mΩ	200	-29℃~60℃	1000	>25MΩ

Application

SENRING A8H series mercury slip ring also called 1 circuits@250A mercury rotating connector (rotary joint),torque 250x10-3Nm,can be transmit 6circuits@30A power+2circuits signal@4A.

Caution

1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection)
2、Vertical installation and storage should keep the UP towards direction
3、Installing the slip ring into the shafe should keep no eccentricity
4、Do not solder on the slip ring and copper terminals
5、Special connection terminals can't use reduplicate
6、Vibration will shorten the working life
7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
Pls follow above instructions, otherwise it will cause the damage or shorten the working life
