A1M5 Series Mercury Slip Ring(1circuits@50A Power Current)
SENRING A1M5 series mercury slip ring also called 1 circuits@50A mercury rotating connector (rotary joint),torque 70x10-3Nm,can be transmit 1circuits@50A power current.
Installation Resources 3D Model @Technical Inquiry Get a Quote

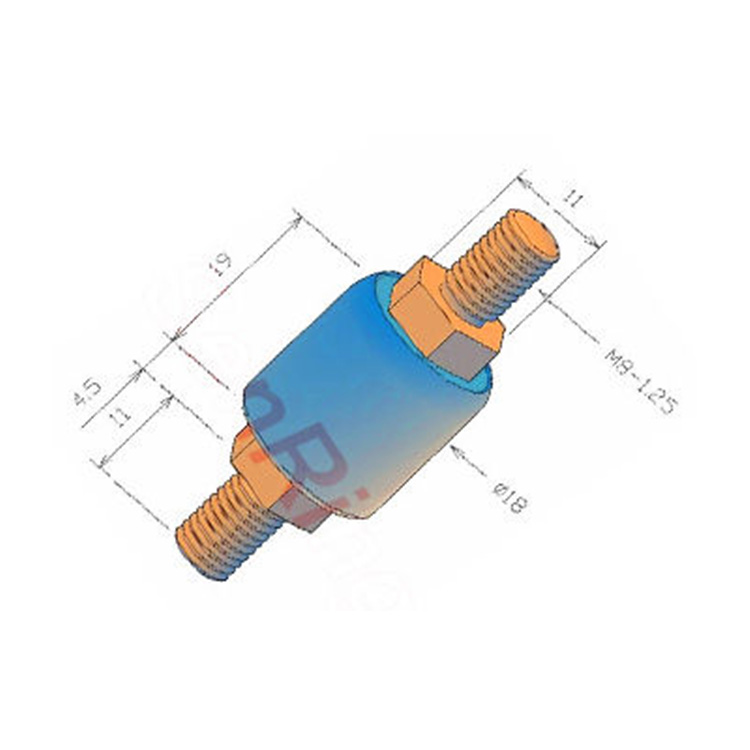

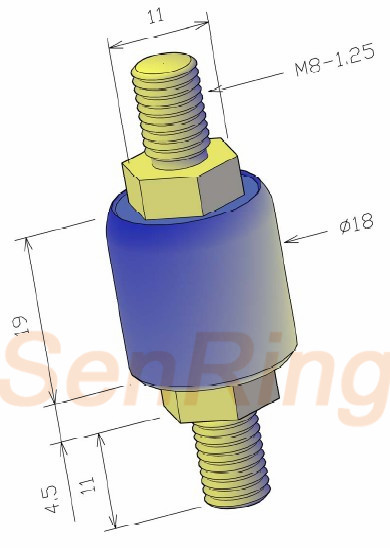

Drawing

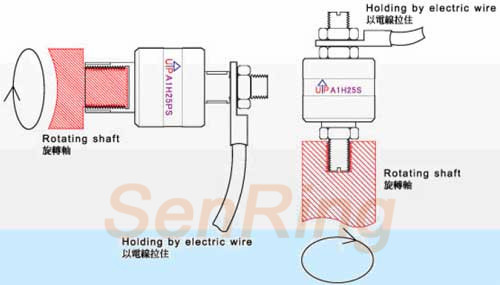

Installation
Standard Model List
| Model | Poles | Current(A) | Dielectric strength AC/DC(V) | Max frequency MHZ | Contact Resistance | Max rotating speed | Working temp.(Max/Min ℃) | Torque (x10-3Nm) | Insolution resistance |
| A1M5 | 1 pole | 50A | -- | 200 | <1mΩ | 1800 | -29℃~60℃ | 70 | -- |
Application
SENRING A1M5 series mercury slip ring also called 1 circuits@50A mercury rotating connector (rotary joint),torque 70x10-3Nm,can be transmit 1circuits@50A power current.
