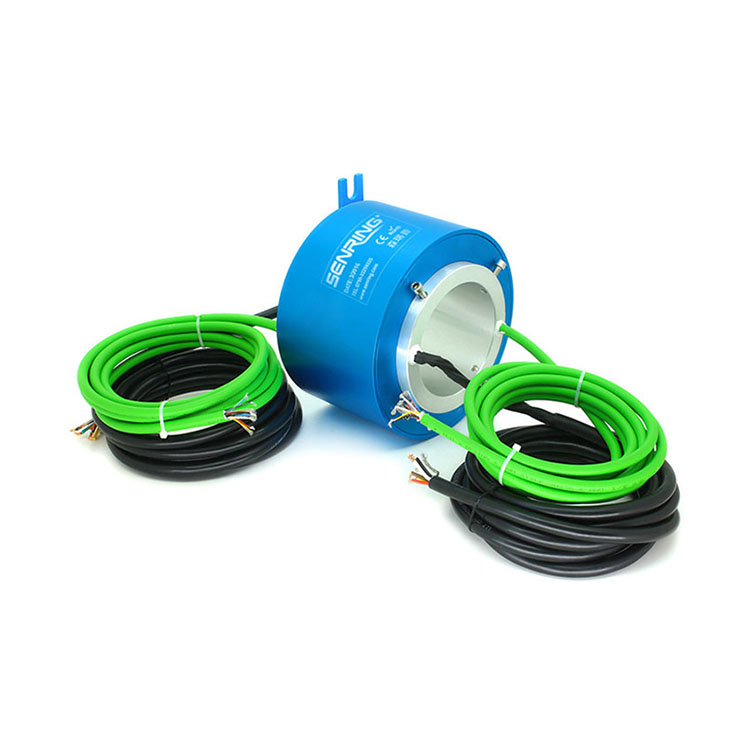

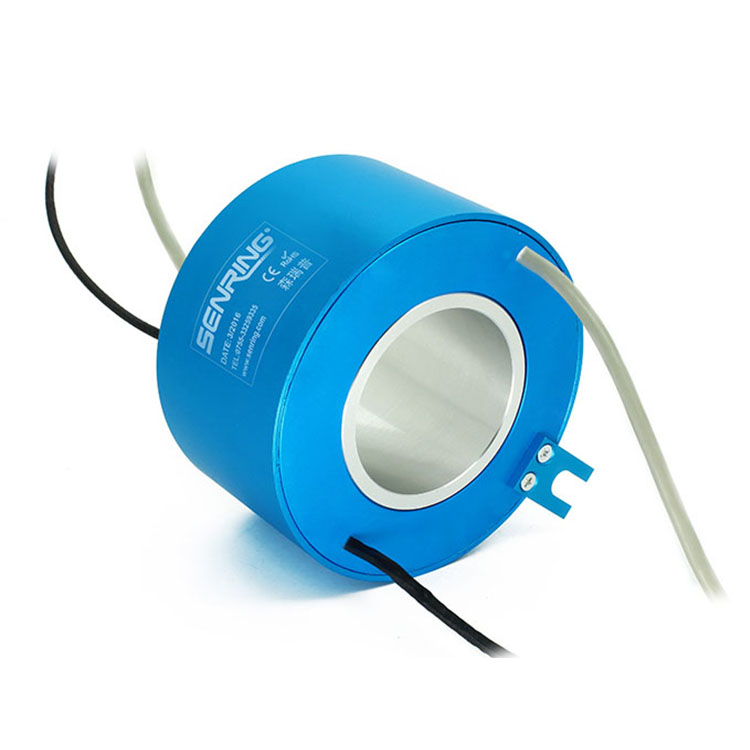

ZH70158 Series Servo Motor Encode Slip Ring

Features

• Hole size 70mm,OD 158mm;
• serve for 1~6pcs servo motors.
• Application for all kinds of foreign & domesitc servo mortor / stepper motor,such as SIMEMS, YASKAWA,Panasonic,Mitsubishi,and so on.
• Special inner wiring and shielding design to avoid encoder errors
• Can combine with other switch signal/power channels , CanBus and Profibus.....
• Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%

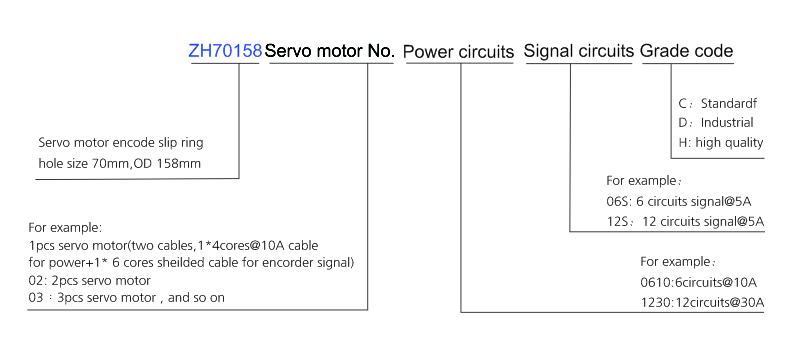

Part no. description

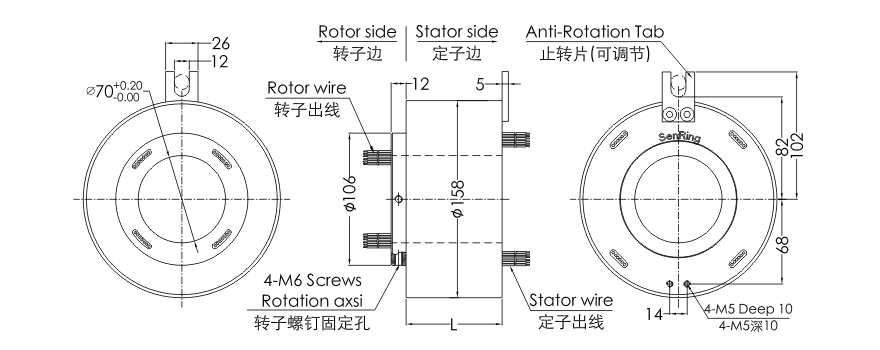

Drawing

Standard Model List

Model list	Servo motor No.	Power circuits(10A)	Signal circuits(5A)	Length L(mm)
ZH70158-01	1	0	0	82
ZH70158-01-06S	1	0	6	106
ZH70158-01-12S	1	0	12	130
ZH70158-01-24S	1	0	24	178
ZH70158-01-1210-12S	1	12	12	178
ZH70158-01-0610-30S	1	6	30	274
ZH70158-01-36S	1	0	36	274
ZH70158-01-1210-36S	1	12	36	122
ZH70158-01-48S	1	0	48	322
ZH70158-01-2410-48S	1	24	48	418
ZH70158-01-72S	1	0	72	418
ZH70158-01-96S	1	0	96	514
ZH70158-01-120S	1	0	120	610
ZH70158-02	2	0	0	130
ZH70158-02-06S	2	0	6	154
ZH70158-02-12S	2	0	12	178
ZH70158-02-24S	2	0	24	226
ZH70158-02-1210-12S	2	12	12	226
ZH70158-02-0610-30S	2	6	30	322
ZH70158-02-36S	2	0	36	322
ZH70158-021210-36S	2	12	36	370
ZH70158-02-48S	2	0	48	370
ZH70158-02-2410-48S	2	24	48	466
ZH70158-02-72S	2	0	72	466
ZH70158-02-96S	2	0	96	562
ZH70158-02-120S	2	0	120	658
ZH70158-04	4	0	0	226
ZH70158-04-06S	4	0	6	250
ZH70158-04-12S	4	0	12	274
ZH70158-04-24S	4	0	24	122
ZH70158-04-1210-12S	4	12	12	322
ZH70158-04-0610-30S	4	6	30	418
ZH70158-04-36S	4	0	36	418
ZH70158-04-1210-36S	4	12	36	466
ZH70158-04-48S	4	0	48	466
ZH70158-04-2410-48S	4	24	48	562
ZH70158-04-72S	4	0	72	562
ZH70158-04-96S	4	0	96	658
ZH70158-04-120S	4	0	120	754
ZH70158-06	6	0	0	322
ZH70158-06-06S	6	0	6	346
ZH70158-06-12S	6	0	12	370
ZH70158-06-24S	6	0	24	418
ZH70158-06-1210-12S	6	12	12	418
ZH70158-06-0610-30S	6	6	30	514
ZH70158-06-36S	6	0	36	514
ZH70158-06-1210-36S	6	12	36	562
ZH70158-06-48S	6	0	48	562
ZH70158-06-2410-48S	6	24	48	658
ZH70158-06-72S	6	0	72	658
ZH70158-06-96S	6	0	96	754
ZH70158-06-120S	6	0	120	850

*Remark: 1pcs servo motor(two cables,1*4 cores@10A cable for power+1*6 cores sheilded cable for encode signal).

Technical Specification Of ZH70158 Series Slip Ring

Mechanical
spec.	data
Working life	pls refer to product grade table
Rotating speed	pls refer to product grade table
Working temp.	-30℃~80℃
Work humidity	0~85% RH
Contact material	refer to slip ring grade table
Housing material	aluminum alloy
Torque	0.1N.m+0.03N.m /6circuits
Mechanical vibration	MIL-STD-810E
Material	RoHS certification

Electrical
spec.	data
	Power	Signal
Voltage range	0~440VAC/VDC	0~440VAC/VDC
Insolution resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Lead wire spec.	power cable or AWG#17 teflon wire	6 cores shielded cable or AWG#22 teflon wire
Lead wire length	standard 300mm (can be customized)
Dielectric Strength	500VAC@50Hz,60s
Electrical noise	< 0.01Ω
Loss rate	<0.02%
CE certification	YES

ZH70158 Grade Table

grade code	Max. Operating Speed	Working life	Contact material
C ：Standard	400RPM	20 millions	precious metal
D：Industrical	800RPM	60 millions	gold-gold
H：High Quality	1200RPM	150 millions	gold alloy
