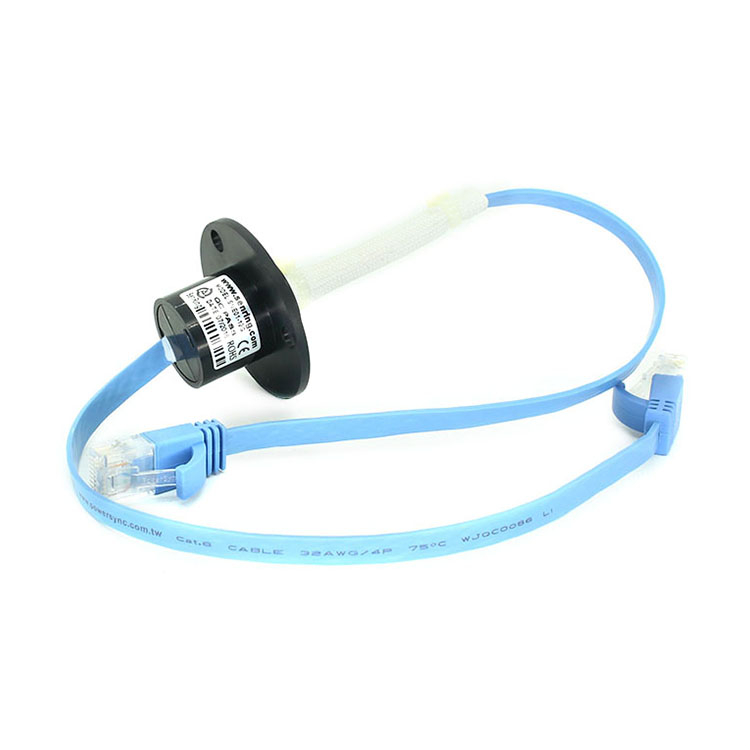

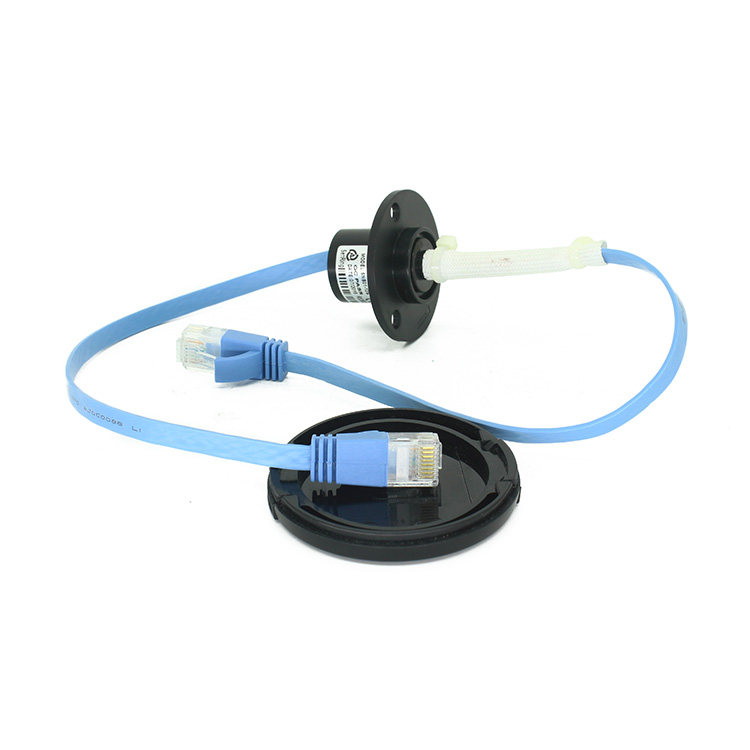

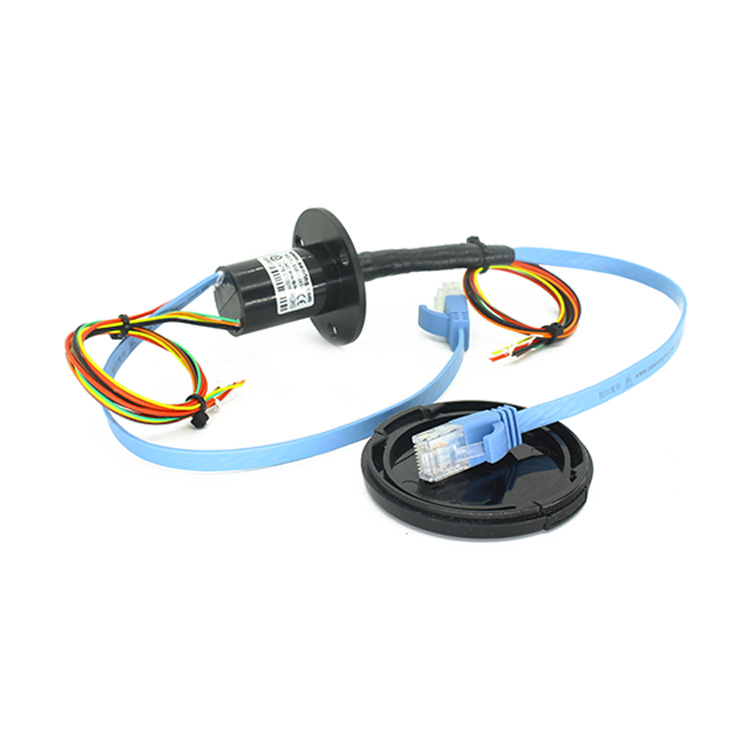

EM022 Series Miniture Gigabit Ethernet Slip Ring

Features

• Standard RJ45 male connector,RJ45 female optional;
• Can transmit 1~2 channels 100M/1000M Ethernet signal steadilys；
• Can be combined to transmit  1~16 circuits power/signal;
• Solid,OD:22mm;
• With advantages of reliable transmitting,no packet loss,no string code,low return loss, low insertion loss,etc.
• With US military plating technology and low BER error rate and high signal-to-noise ratio;

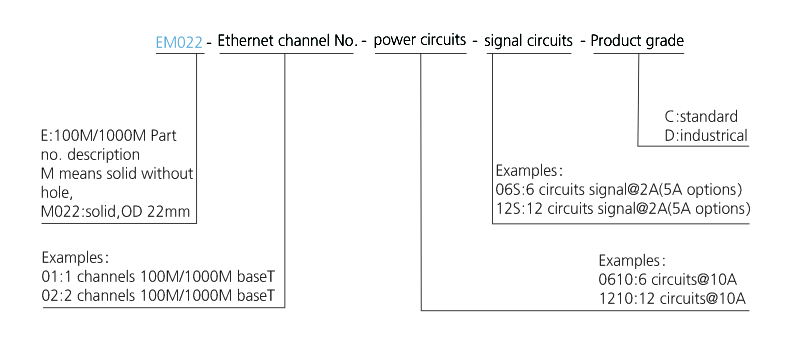

Part no. description

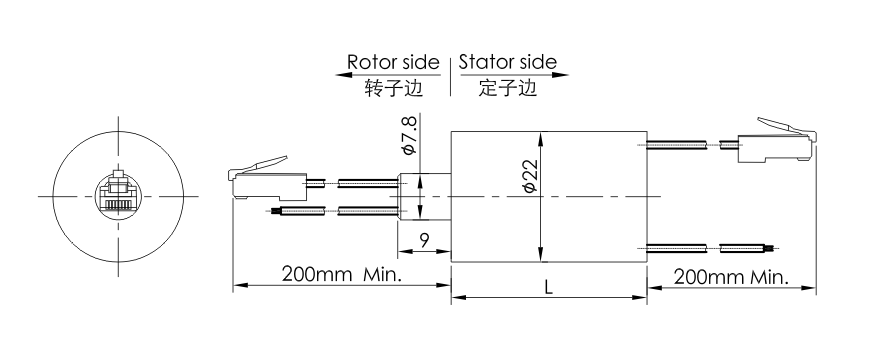

Drawing

Standard Model List

Model	power/signal circuits no.			Number of Ethernet channels		length L(mm)
	signal(0∼2A)	power（5A）	power（20A）	100M ethernet	1000M ethernet
EM022-06	0	0	0	1	0	19
EM022-12	6	0	0	1	0	26
EM022-12V	0	2	0	1	0	26
EM022-12G	0	0	0	0	1	26
EM022-18	12	0	0	1	0	33
EM022-18V	6	2	0	1	0	33
EM022-18X	2	0	2	1	0	33
EM022-18G	6	0	0	0	1	33
EM022-18GV	0	2	0	0	1	33
EM022-24	18	0	0	1	0	40
EM022-24V	12	2	0	1	0	40
EM022-24X	8	0	2	1	0	40
EM022-24G	12	0	0	0	1	40
EM022-24GV	6	2	0	0	1	40
EM022-24GX	2	0	2	0	1	40
EM022-24GG	0	0	0	0	2	40

*Note: N 10A current loops combined can be used as one N*10A current loop, and so on. For example, two 10A loops combined can be used as one 20A loop. If you need to customize Ethernet and the number of power/signal paths, or mix other signals, please contact Senripu sales staff.

Technical Specification Of em022 Series Slip Ring

Ethernet	1~2 channels 100M/1000M baseT
Mechanical Data
spec	data
working life	refer to slip ring grade table
Rotating speed	refer to slip ring grade table
working temp	-30℃~80℃
work humidity	0~85% RH
contact material	refer to slip ring grade table
housing material	aluminum alloy
torque	0.1N.m;+0.03N.m /6 circuits
Mechanical vibration	MIL-STD-810E

connectors	RJ45
Electrical Data
spec	data
	power	signal
voltage range	0∼440VAC/VDC	0∼440VAC/VDC
insulation resistance	≥1000MΩ/500VDC	≥1000MΩ/500VDC
lead wire spec	AWG17#Silver-plated teflon wire	AWG22#Silver-plated teflon wire
lead wire length	standard 200mm（can be customized）
Dielectric Strength	500VAC@50Hz，60s
Electrical noise	< 0.01Ω
Electrical Noise	<10 Ω
CE certificate	yes
Mechanical vibration	MIL-STD-810E
material	RoHS compliant
material	RoHS compliant

em022 Grade Table

Grade code	Max rotating speed	Working Life	Contact Material
C：Standard	250RPM	20 millions	precious metal
D：Industrical	600RPM	80 millions	gold-gold
