M capsule slip ring series

Senring M series Mini slip ring is specially designed for data and video signals transmission of small and medium-sized equipment, like speed dome camera, children intelligent toys, stage lights and drones.

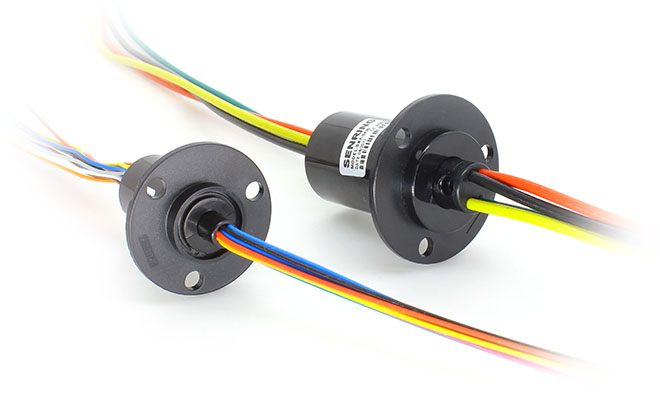

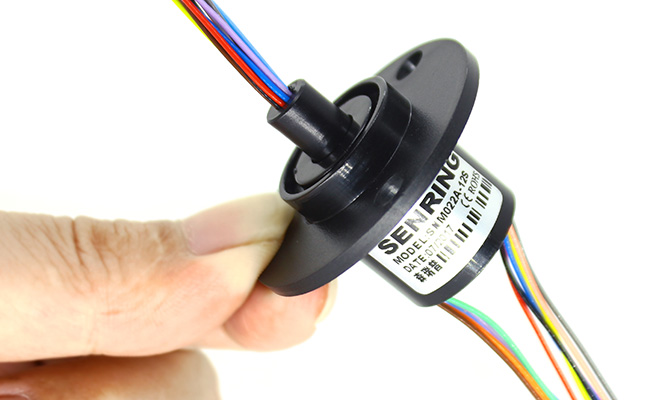

  1. senring capsule slip ringsenring capsule slip ring

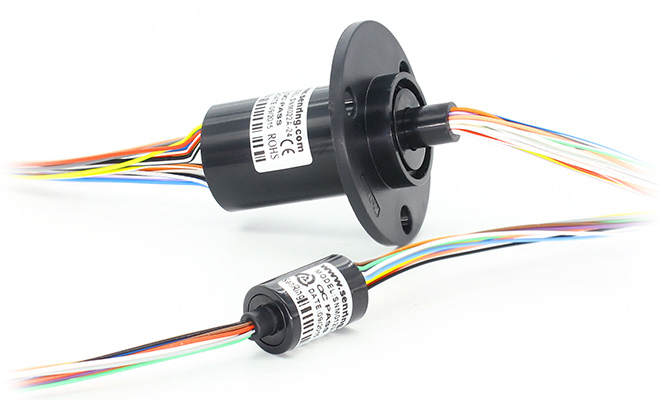

  2. OD 6.5mm miniature capsule slip ringOD 6.5mm miniature capsule slip ring

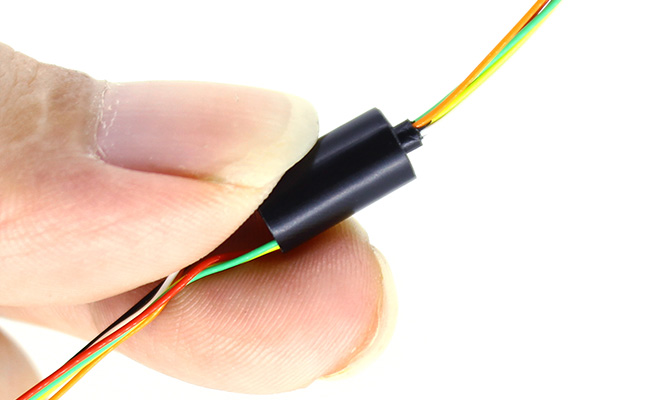

  3. OD 22mm compact slip ring capsuleOD 22mm compact slip ring capsule
Features
360° rotating signal/power transmission, such as control signals, video signals, HD signals, ethernet, sensor, and so on
Advanced military level, gold-gold contact ensures low contact resistance and long working life
Low torque, low insertion loss, no maintenance;
6.5mm;Minimum OD 6.5mm
Stator flange or without flange installation optional
Integrated structure design, easy installation
Part no. description
M OD - F - XX - A
M:capsule slip ring
OD: outer dimension of housing
065: OD 6.5mm , 079: OD 7.9mm , 125: OD 12.5mm
155: OD 15.5mm , 220: OD 22mm , 250: OD 25mm
300: OD 30mm
F:flange type(refer drawing)
XX: circuits no.
04: 4 circuits ,06: 6 circuits
08: 8 circuits ,12: 12 circuits
18: 18 circuits ,24: 24 circuits
56: 56 circuits
A: current
default current , can be omitted
05: 0~5A,10: 0~10A
15: 0~15A,30: 0~30A
50: 0~50A
For example

"M065-08" : "M" means capsule slip ring,"065" means OD 6.5mm, without flange, ,"08" means 8 wires,current each 1A;

"M125A-12" : "M" means capsule slip ring,"125" means OD 12.5mm,"A" means flange A type,"12" means 12 wires,current each 2A;

"M220C-0605" : "M" means capsule slip ring,"220" means OD 22mm,"C" means flange C type,"0605" means 6 wires, current each 5A。

mode list
model# OD(mm) circuits no. Max current PDF
6.54,6,8,121A
7.94,6,8,121A
12.52,3,4,6,12,181.5A,5A
15.5241.5A
222,3,4,6,8,12,18,24,362A,5A,10A,30A
25562A
302,3,4,630A,50A

*If no standard models suitable , contact us for custom solutions,E-mail: info@senring.com senring.us@gmail.com, sales@senring.com

Color code of Lead Wire
ring no.123456789101112
color blackbrownredorangeyellowgreenbluepurplegreywhitepinklightblue
ring no.131415161718192021222324
color WHT/BLKWHT/BRNWHT/REDWHT/ORGWHT/YELWHT/GRNWHT/BLUWHT/PURWHT/GRYBLK/REDBLK/BRNtransparent
Applied projects
Communication experts abroad use Senring capsule slip ring to creat DIY high-specs FPV antenna tracker(I)-slip ring factory
