Pneumatic Rotary Union(+Electric)

3001015 Series G1/2 1-Passage Rotary Unions

1-Passage+2~96 Circuits Electrical,support 1 G1/2" port for 12~15mm pipes

SENRING 1-passages rotary unions 3001015 series,support G1/2" port for 12~15mm pipes,can transfer various mediums including air,steam,vacuum,air,steam,vacuum,Coolant,MQL,Vacuum,etc when 360° rotating, Advantages : compact size, light weight , low torque.

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings,etc.;
360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc.
Max. Pressure(s):10Mpa (vacuum: -1.5kPa, higher Pressure can be customized);
Standard version with flange mounting,can be customized with hollow shaft mounting;
Support 1 G1/2" port for 12~15mm pipes;
Part no. description

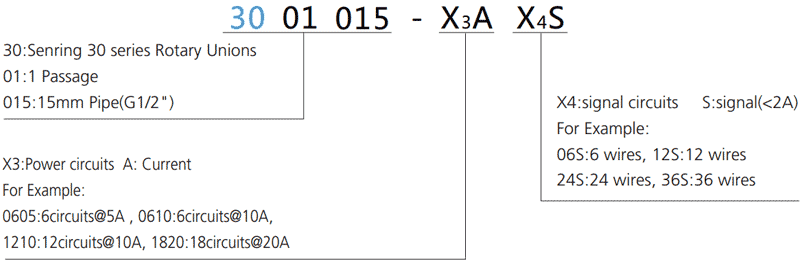

3001015 series 3001015 Series G1/2 1-Passage Rotary Unions slip ring description
Drawing

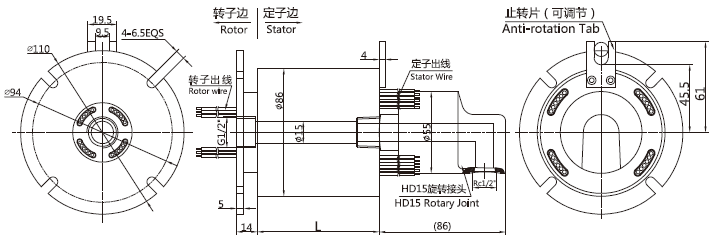

3001015 series 3001015 Series G1/2 1-Passage Rotary Unions slip ring Drawing
Standard model list
Model List Passages(Gas) Power Circuits(10A) Signal Circuits(2A) Length L(mm)
3001015-02S 1 passage 0 2 32
3001015-0210 1 passage 2 0 32
3001015-03S 1 passage 0 3 36
3001015-0310 1 passage 3 0 36
3001015-06S 1 passage 0 6 48
3001015-0210-04S 1 passage 2 4 48
3001015-0410-02S 1 passage 4 2 48
3001015-0610 1 passage 6 0 48
3001015-12S 1 passage 0 12 72
3001015-0210-10S 1 passage 2 10 72
3001015-0310-09S 1 passage 3 9 72
3001015-0610-06S 1 passage 6 6 72
3001015-0810-04S 1 passage 8 4 72
3001015-1010-02S 1 passage 10 2 72
3001015-1210 1 passage 12 0 72
3001015-18S 1 passage 0 18 96
3001015-0210-16S 1 passage 2 16 96
3001015-0410-14S 1 passage 4 14 96
3001015-0610-12S 1 passage 6 12 96
3001015-0810-10S 1 passage 8 10 96
3001015-1010-08S 1 passage 10 8 96
3001015-1210-06S 1 passage 12 6 96
3001015-1410-04S 1 passage 14 4 96
3001015-1610-02S 1 passage 16 2 96
3001015-24S 1 passage 0 24 120
3001015-0410-20S 1 passage 4 20 120
3001015-0610-18S 1 passage 6 18 120
3001015-1210-12S 1 passage 12 12 120
3001015-1810-06S 1 passage 18 6 120
3001015-2410 1 passage 24 0 120
3001015-30S 1 passage 0 30 144
3001015-0610-24S 1 passage 6 24 144
3001015-1210-18S 1 passage 12 18 144
3001015-1810-12S 1 passage 18 12 144
3001015-2410-06S 1 passage 24 6 144
3001015-3010 1 passage 30 0 144
3001015-36S 1 passage 0 36 168
3001015-0610-30S 1 passage 6 30 168
3001015-1210-24S 1 passage 12 24 168
3001015-3610 1 passage 36 0 168
3001015-42S 1 passage 0 42 192
3001015-0610-36S 1 passage 6 36 192
3001015-1210-30S 1 passage 12 30 192
3001015-48S 1 passage 0 48 216
3001015-0610-42S 1 passage 6 42 216
3001015-1010-38S 1 passage 10 38 214
3001015-1210-36S 1 passage 12 36 216
3001015-1810-30S 1 passage 18 30 216
3001015-2410-24S 1 passage 24 24 216
3001015-60S 1 passage 0 60 264
3001015-0610-54S 1 passage 6 54 264
3001015-1010-50S 1 passage 10 50 264
3001015-72S 1 passage 0 72 312
3001015-96S 1 passage 0 96 408
Technical Specification of 3001015 series slip ring
Rotary Unions & Joints Spec.
Passages(Gas) 1 passage Max. Operating Pressure Positive Pressure 10Mpa, Vacuum -1.5kPa
Pipe Size 15mm pipe, G1/2" Port torque 0.2N.m
Mechanical Data Electrical Data
spec. data spec. data
Working life 20millions for ref(depends on working conditions) Power Signal
Max. Operating Speed 250RPM continously, 1000RPM intermittently Voltage range 0~440VAC/VDC 0~440VAC/VDC
Working temp. -30°C~80°C Insolution resistance <500MΩ/300VDC <500MΩ/300VDC
Work humidity 0~85% RH Lead wire spec. AWG17# Silver-plated teflon wire AWG22# Silver-plated teflon wire
Contact Materia Precious Metal Lead wire length standard 250mm(can be customized)
Housing Material aluminum alloy Insolution resistance [email protected],6s
IP Grade IP51 Electrical noise <0.01Ω
