ZM099 Series Servo Motor Encode Slip Ring

without hole(solid),OD 99mm,serve for 1~8pcs servo motors

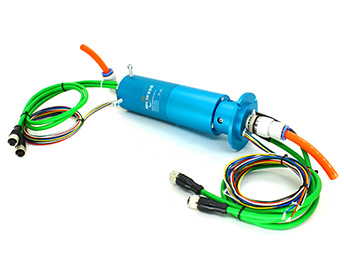

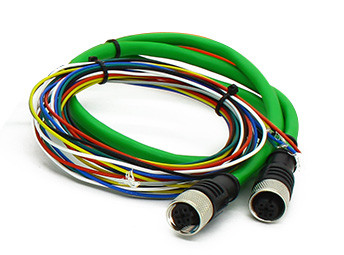

Senring ZM099 series OD 99mm,without hole(solid)servo motor encode slip rings,specially desinged for servo motor/encoder of SIMEMS, YASKAWA,Panasonic,Mitsubishi, suitable for all kinds of foreign & domesitc servo mortor / stepper motor.Special inner wirin

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
OD 99mm,without hole(solid);
With flange on rotor side for installation,serve for 1~8pcs servo motors.
Application for all kinds of foreign & domesitc servo mortor / stepper motor,such as SIMEMS, YASKAWA,Panasonic,Mitsubishi,and so on.
Special inner wiring and shielding design to avoid encoder errors
Can combine with other switch signal/power channels , CanBus and Profibus.....
Special inner wiring and shielding design to avoid encoder errors,loss rate:<0.02%
Part no. description
zm099 series ZM099 Series Servo Motor Encode Slip Ring slip ring description
Drawing
zm099 series ZM099 Series Servo Motor Encode Slip Ring slip ring Drawing
Standard model list
Model list Servo motor No. Power circuits(10A) Signal circuits(5A) Length L(mm)
ZM099-01 1 0 0 72
ZM099-01-06S 1 0 6 96
ZM099-01-12S 1 0 12 120
ZM099-01-24S 1 0 24 168
ZM099-01-1210-12S 1 12 12 168
ZM099-01-0610-30S 1 6 30 264
ZM099-01-36S 1 0 36 264
ZM099-01-1210-36S 1 12 36 312
ZM099-01-48S 1 0 48 312
ZM099-01-2410-48S 1 24 48 408
ZM099-01-72S 1 0 72 408
ZM099-01-96S 1 0 76 504
ZM099-01-120S 1 0 120 600
ZM099-02 1 0 0 120
ZM099-02-06S 2 0 6 144
ZM099-02-12S 2 0 12 168
ZM099-02-24S 2 0 24 216
ZM099-02-1210-12S 2 12 12 216
ZM099-02-0610-30S 2 6 30 312
ZM099-02-36S 2 0 36 312
ZM099-02-1210-36S 2 12 36 360
ZM099-02-48S 2 0 48 360
ZM099-02-2410-48S 2 24 48 456
ZM099-02-72S 2 0 72 456
ZM099-02-96S 2 0 76 552
ZM099-02-120S 2 0 120 648
ZM099-04 4 0 0 216
ZM099-04-06S 4 0 6 240
ZM099-04-12S 4 0 12 264
ZM099-04-24S 4 0 24 312
ZM099-04-1210-12S 4 12 12 312
ZM099-04-0610-30S 4 6 30 408
ZM099-04-36S 4 3 36 408
ZM099-04-1210-36S 4 12 36 456
ZM099-04-48S 4 0 48 456
ZM099-04-2410-48S 4 24 48 552
ZM099-04-72S 4 0 72 552
ZM099-04-96S 4 0 76 648
ZM099-04-120S 4 0 120 744
ZM099-08 8 0 0 408
ZM099-08-06S 8 0 6 432
ZM099-08-12S 8 0 12 456
ZM099-08-24S 8 0 24 504
ZM099-08-1210-12S 8 12 12 504
ZM099-08-0610-30S 8 6 30 600
ZM099-08-36S 8 0 36 600
ZM099-08-1210-36S 8 12 36 648
ZM099-08-48S 8 0 48 648
ZM099-08-2410-48S 8 24 48 744
ZM099-08-72S 8 0 72 744
ZM099-08-96S 8 0 76 840
ZM099-08-120S 8 0 120 936

*Remark: 1pcs servo motor(two cables,1*4 cores@10A cable for power+1*6 cores sheilded cable for encode signal).

Technical Specification of zm099 series slip ring
Mechanical
spec. data
Working life pls refer to product grade table
Rotating speed pls refer to product grade table
Working temp. -30℃~80℃
Work humidity 0~85% RH
Contact material refer to slip ring grade table
Housing material aluminum alloy
Torque 0.1N.m+0.03N.m/6circuits
Mechanical vibration MIL-STD-810E
Material RoHS certification
Electrical
spec. data
Power Signal
Voltage range 0~440VAC/VDC 0~440VAC/VDC
Insolution resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
Lead wire spec. power cable or AWG#17 teflon wire 6 cores shielded cable or AWG#22 teflon wire
Lead wire length standard 300mm
(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω
Loss rate <0.02%
CE certification YES
zm099 Grade Table
grade code Max. Operating Speed Working life Contact material
C:Standard 400RPM 20 millions revolutions precious metal
D:Industrical 800RPM 60 millions revolutions gold-gold
H:High Quality 1200RPM 150 millions revolutions gold alloy
