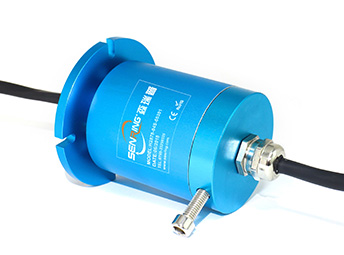

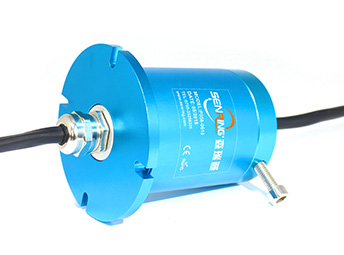

F086 Series Waterproof Slip Ring(OD 86mm,IP65)

IP grade:IP65,IP68 optional,solid,OD:86mm;

SENRING F086 series Dustproof&waterproof Slip Rings also called Dustproof&waterproof Lead Electric Appliance,with IP65 (lower than F028 and F038),applied to devices no need to immerse slip-ring in water,such as Packaging machine, Beer machine and other eq

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
IP grade:IP65,IP68 customization available.
OD:86mm,length ranges from 62~246mm;
Support 2~48 circuits@5A~10A power/signal;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment;
Integrated structure, easy installation;
Part no. description
f086 series F086 Series Waterproof Slip Ring(OD 86mm,IP65) slip ring description
Drawing
f086 series F086 Series Waterproof Slip Ring(OD 86mm,IP65) slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
signal/5A 10A
F086-0210 0 2 62
F086-02S 2 0 62
F086-0310 0 3 66
F086-03S 3 0 66
F086-0410 0 4 70
F086-04S 4 0 70
F086-0210-02S 2 2 70
F086-0610 0 6 78
F086-06S 6 0 78
F086-0210-04S 4 2 78
F086-0410-02S 2 4 78
F086-1210 0 12 102
F086-12S 12 0 102
F086-0610-06S 6 6 102
F086-1810 0 18 126
F086-18S 18 0 126
F086-0610-12S 12 6 126
F086-1210-06S 6 12 126
F086-2410 0 24 150
F086-24S 24 0 150
F086-1210-12S 12 12 150
F086-0610-18S 18 6 150
F086-3010 0 30 174
F086-30S 30 0 174
F086-1810-12S 12 18 174
F086-1210-18S 18 12 174
F086-0610-24S 24 6 174
F086-3610 0 36 198
F086-36S 36 0 198
F086-2410-12S 12 24 198
F086-1210-24S 24 12 198
F086-48S 48 0 246

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SENRING salesman.

Technical Specification of f086 series slip ring
Mechanical Data
spec data
Rotating speed refer to slip ring grade table
working temp. -40℃∼85℃
IP grade IP65, optional IP68
contact material refer to slip ring grade table
housing material aluminum alloy或stainless steel
certificate RoHS certificate
Electrical Data
spec data
voltage range 0∼440VAC/VDC 0∼440VAC/VDC
insulation resistance ≥1000MΩ/500VDC ≥1000MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG22# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 800VAC@50Hz,60s
Electrical noise < 0.01Ω
CE certificate yes

f086 Grade Table
Grade code Max rotating speed working life contact material
C:(standard) 100RPM 10 millions  precious metal
D:(industrical) 200RPM 30 millions
gold-gold
