SENRING
Dustproof & Waterproof Slip Ring

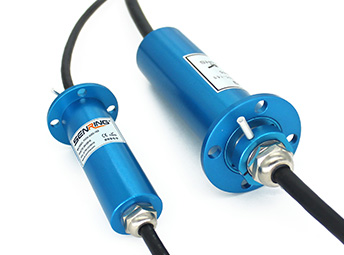

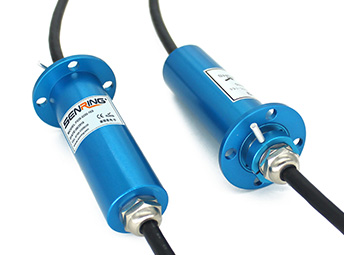

F038 Series Dustproof&Waterproof Slip Rings Lead Electric Appliance

IP grade:IP68,solid,OD:38mm;

SENRING F038 series Waterproof slip ring ,OD38mm,maximum IP:IP68,can conduct electricity and transfer various signals when 360° roating underwater,anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of

INSTALLATION RESOURCES 3D MODEL @TECHNICAL INQUIRY

GET A QUOTE
Features
IP grade:IP68,can work stably underwater.
OD:38mm,length ranges from 113~116mm;
Support 2~56 circuits@2A~20A power/signal;
Anti-corrosion,acid and alkali resistance stainless steel housing make sure work stably in all kinds of bad environment;
Part no. description
f038 series  F038 Series Dustproof&Waterproof Slip Rings Lead Electric Appliance slip ring description
Drawing
f038 series  F038 Series Dustproof&Waterproof Slip Rings Lead Electric Appliance slip ring Drawing
Standard model list
Model Circuit/Signal no. Length L(mm)
2A 5A 10A 20A
F038-0430 0 0 4 0 107.5
F038-0620 0 6 0 0 107.5
F038-0250 0 0 0 2 107.5
F038-36S 36 0 0 0 107.5
F038-56S 56 0 0 0 107.5

*Remark:Circuits can be combined in parallel for bigger current,N circuits of 10A to get N*10A,such as 2 circuits of 10A in parallel for 20A use. if you need customize the Ethernet,power and signal channel no. or mix other signal of slip ring,pls contact the SENRING salesman.

Technical Specification of f038 series slip ring
Mechanical Data
spec data
Rotating speed refer to slip ring grade table
working temp. -40℃∼85℃
IP grade IP68
contact material refer to slip ring grade table
housing material stainless steel
certificate RoHS certificate
CE certificate yes
Electrical Data
spec data
voltage range 0∼240VAC/VDC 0∼240VAC/VDC
insulation resistance ≥500MΩ/500VDC ≥500MΩ/500VDC
lead wire spec. AWG17# Silver-plated teflon AWG28# Silver-plated teflon
lead wire length standard 300mm(can be customized)
Dielectric Strength 500VAC@50Hz,60s
Electrical noise < 0.01Ω

f038 Grade Table
Grade code Max rotating speed working life contact material
C:(standard) 100RPM 1000 millions  precious metal
D:(industrical) 200RPM 3000 millions
gold-gold
